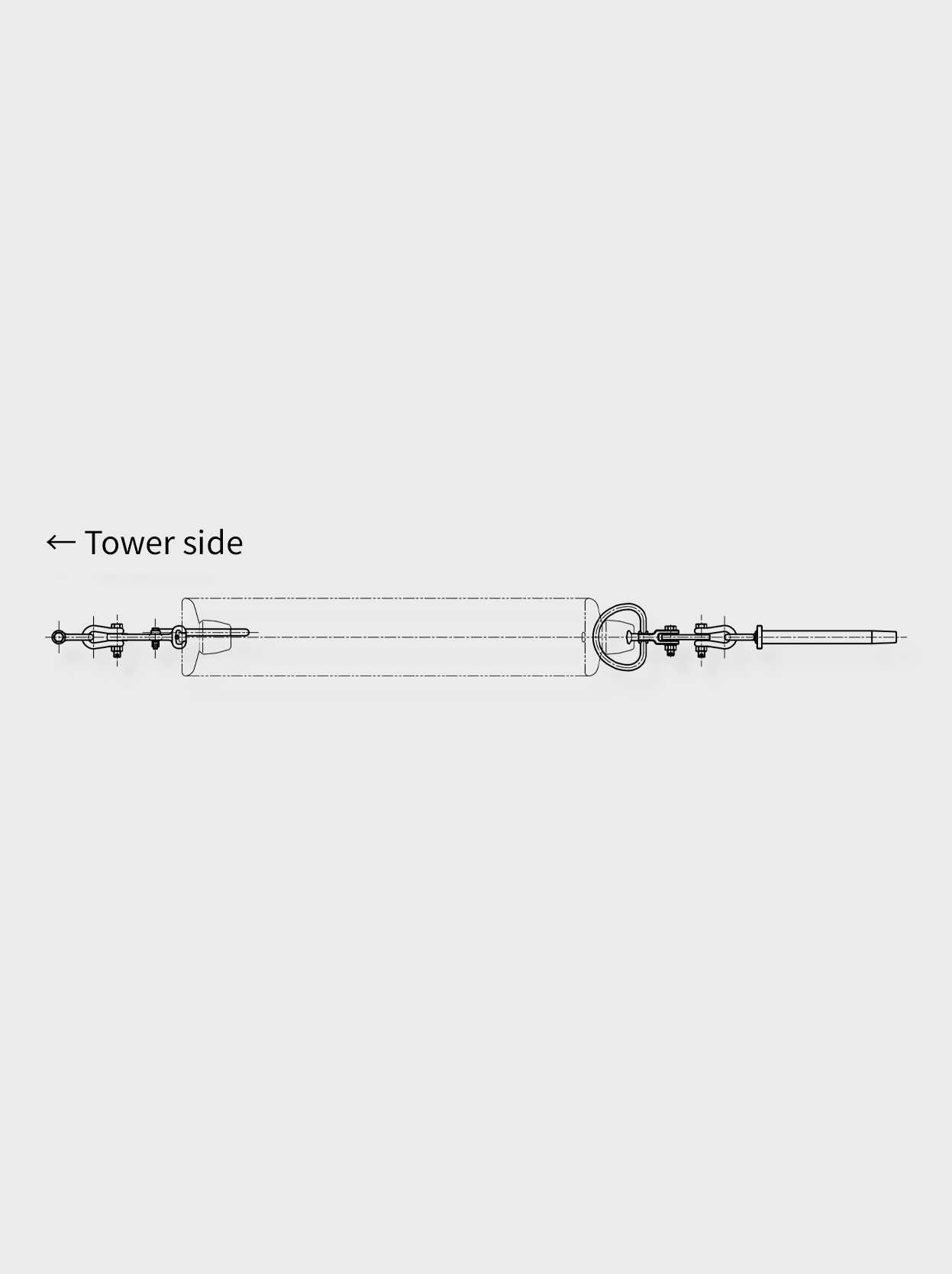

1-bundle tension single conductor normal type
1-bundle tension single conductor inverted type

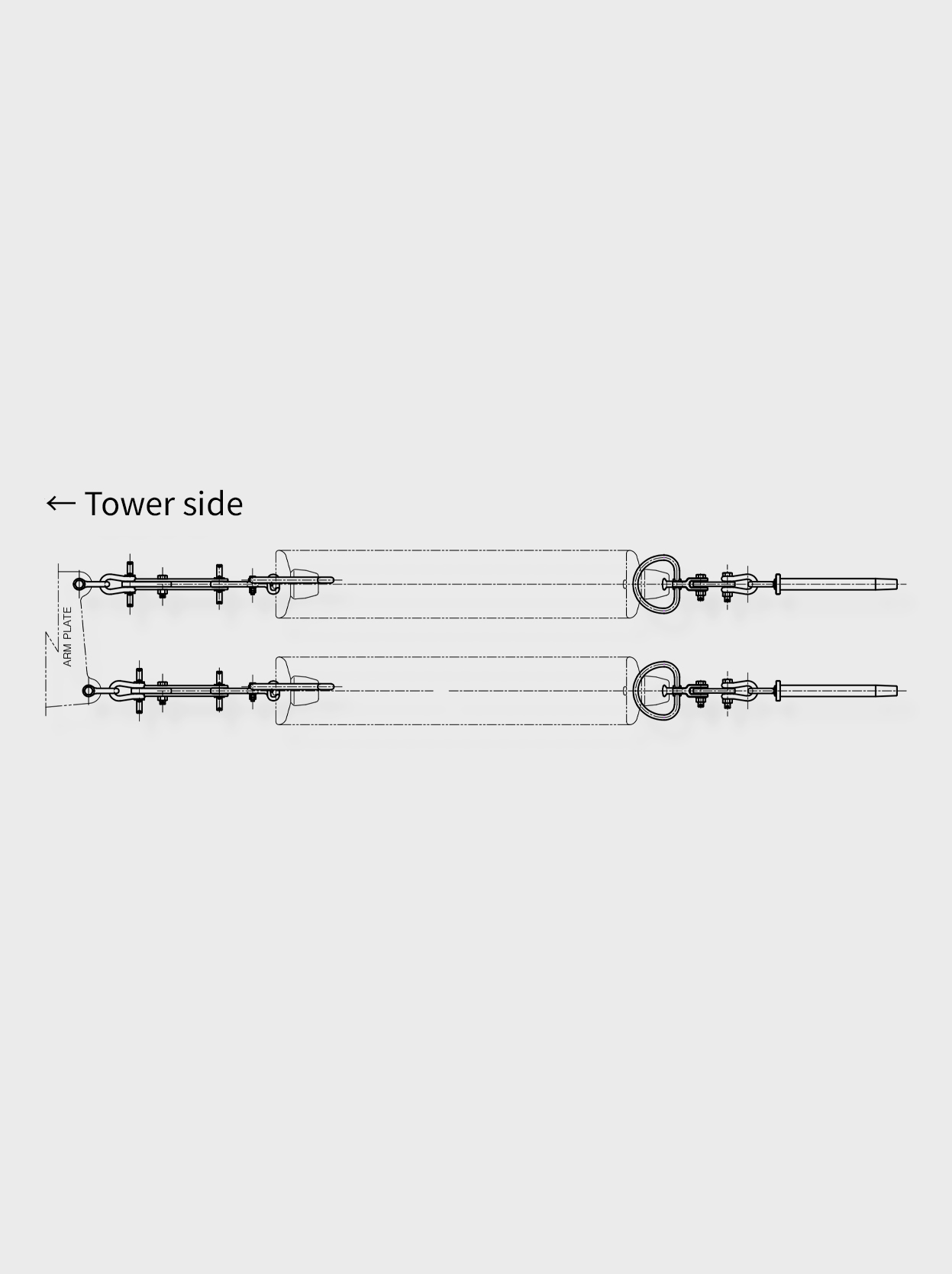

2-bundle tension single conductor normal type
2-bundle tension single conductor inverted type

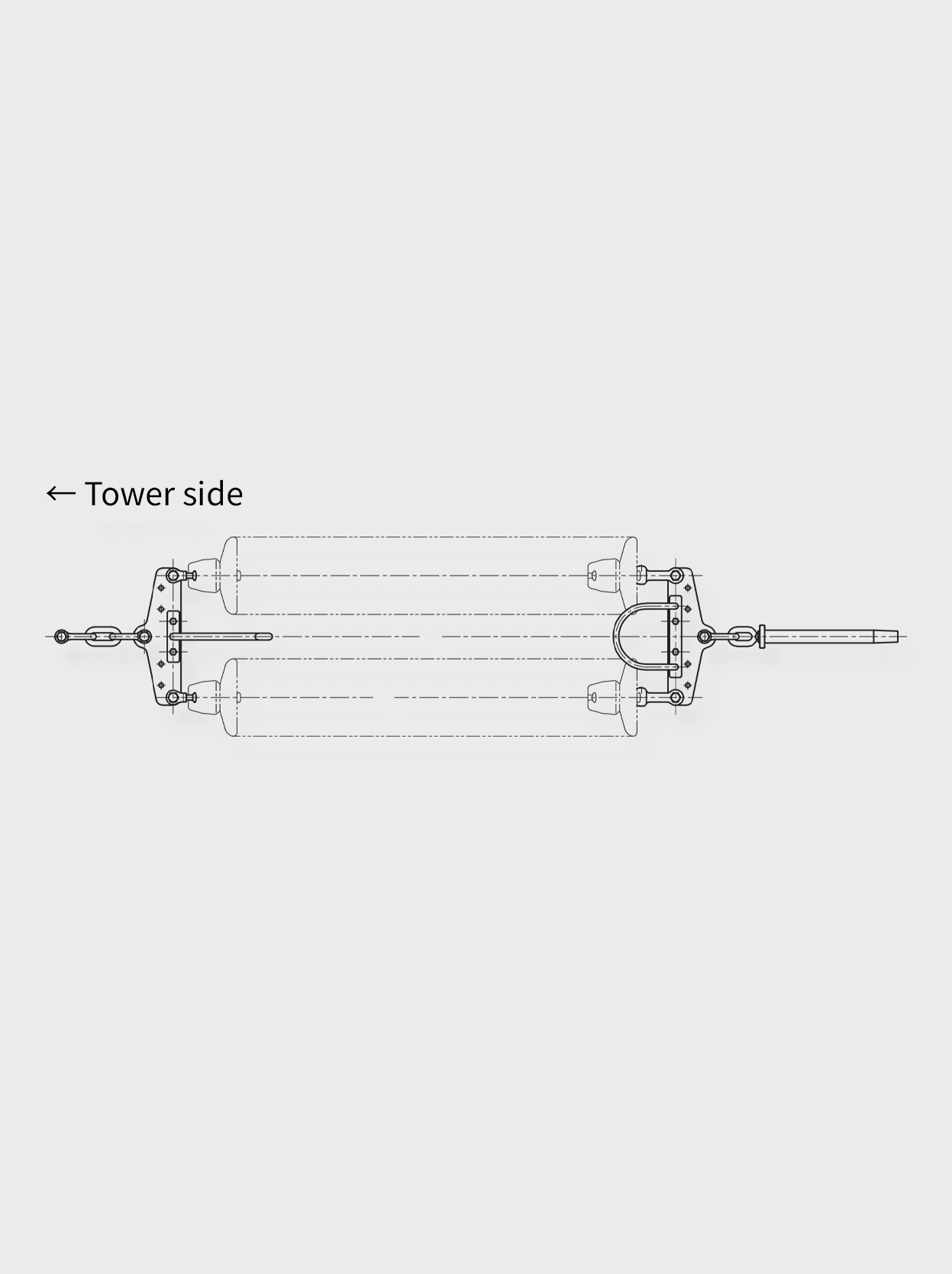

2-bundle tension double conductor normal type
2-bundle tension double conductor inverted type
1-bundle tension
single conductor
1-bundle tension
double conductor
2-bundle suspension
single conductor
2-bundle suspension
double conductor
154kV Insulator String Hardware
Function and use
Insulator hardware used in 154kV transmission lines, with conductors classified as 1-bundle (single conductor) or 2-bundle (double conductor) configurations, and insulator strings available in 1-bundle and 2-bundle arrangements
| Product Category | Product |
|---|---|
| Tension Hardware | 1-bundle tension single conductor normal type |
| 1-bundle tension single conductor inverted type | |
| 2-bundle tension single conductor normal type | |
| 2-bundle tension single conductor normal type | |
| 2-bundle tension double conductor normal type | |
| 2-bundle tension double conductor normal type | |
| Suspension Hardware | 1-bundle suspension single conductor |
| 1-bundle suspension double conductor | |
| 2-bundle suspension single conductor | |
| 2-bundle suspension double conductor |
Types and Specification
| KEPCO Engineering Standard | Item Number | Rated Voltage(mm²) | Conductor | Type | Test Tension [kN(kgf)] | Application |
|---|---|---|---|---|---|---|
| ES-5975-0053 : 154kV Transmission Line Insulator String Hardware |
101365 | 330 | Single Conductor | 1-bundle suspension insulator string hardware | 117.68 (12,000) | 12,000kgf (25,000lbs) 16,500kgf (36,000lbs) |
| 101366 | 2-bundle suspension insulator string hardware | 161.81 (16,500) | ||||
| 101367 | 1-bundle tension insulator string hardware | 117.68 (12,000) | ||||
| 101368 | 2-bundle tension insulator string hardware | 161.81 (16,500) | ||||
| 101369 | 1-bundle tension insulator string hardware (inverted) | 117.68 (12,000) | ||||
| 101370 | 2-bundle tension insulator string hardware (inverted) | 161.81 (16,500) | ||||
| 101371 | Double Conductor | 1-bundle suspension insulator string hardware | 117.68 (12,000) | |||
| 101372 | 2-bundle suspension insulator string hardware | 161.81 (16,500) | ||||
| 101373 | 2-bundle tension insulator string hardware | 117.68 (12,000) | ||||
| 101374 | 2-bundle tension insulator string hardware (inverted) | 117.68 (12,000) | ||||
| 101377 | 410 | Single Conductor | 1-bundle suspension insulator string hardware | 117.68 (12,000) | 12,000kgf (25,000lbs) 16,500kgf (36,000lbs) |
|
| 101378 | 2-bundle suspension insulator string hardware | 161.81 (16,500) | ||||
| 101379 | 1-bundle tension insulator string hardware | 161.81 (16,500) | ||||
| 101380 | 2-bundle tension insulator string hardware | 161.81 (16,500) | ||||
| 101381 | 1-bundle tension insulator string hardware (inverted) | 161.81 (16,500) | ||||
| 101382 | 2-bundle tension insulator string hardware (inverted) | 161.81 (16,500) | ||||
| 101383 | Double Conductor | 1-bundle suspension insulator string hardware | 117.68 (12,000) | |||
| 101384 | 2-bundle suspension insulator string hardware | 161.81 (16,500) | ||||
| 101385 | 2-bundle tension insulator string hardware | 161.81 (16,500) | ||||
| 101386 | 2-bundle tension insulator string hardware (inverted) | 161.81 (16,500) |
