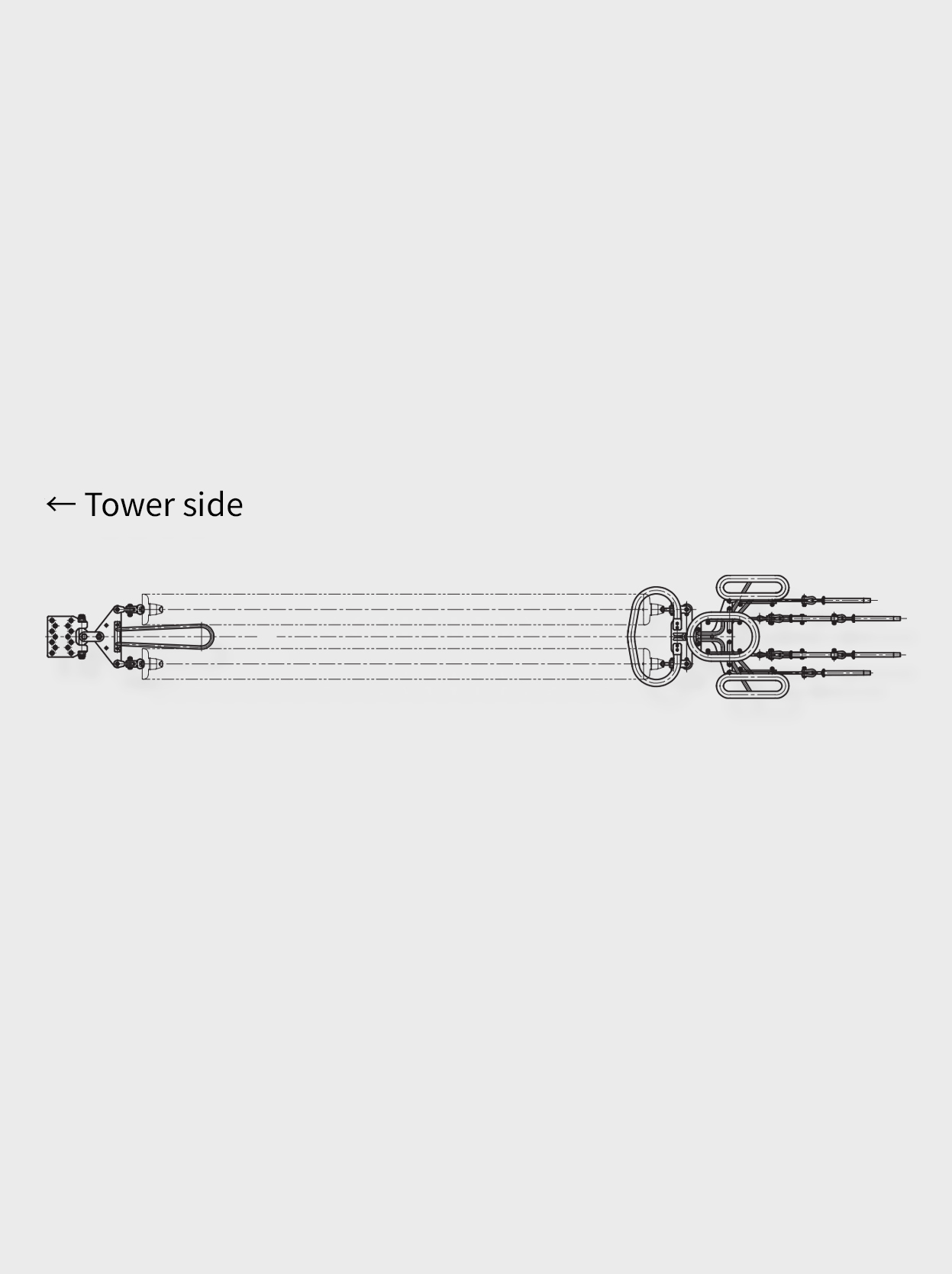

2-bundle tension 6B normal standard

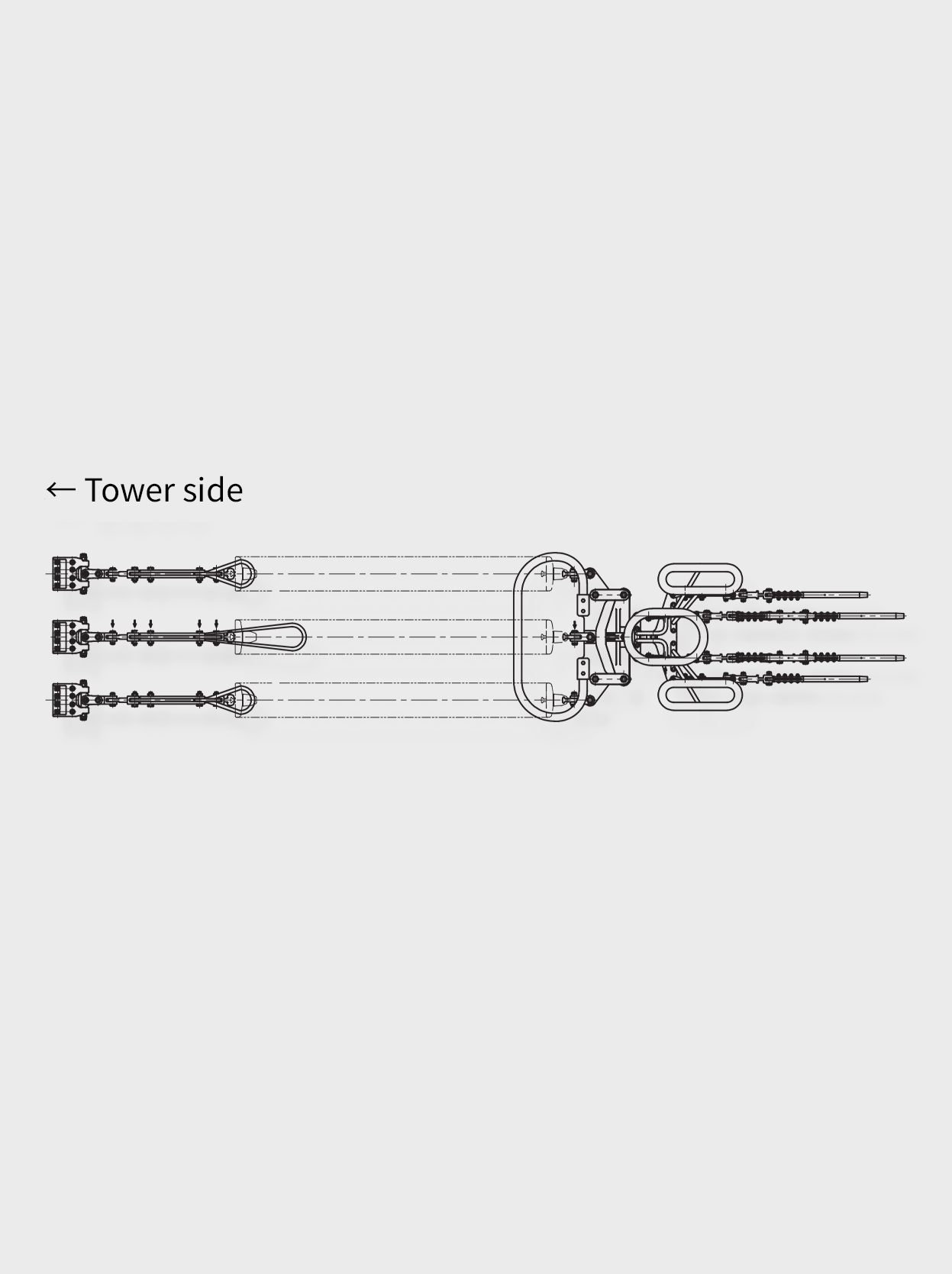

2-bundle tension 6B inverted standard

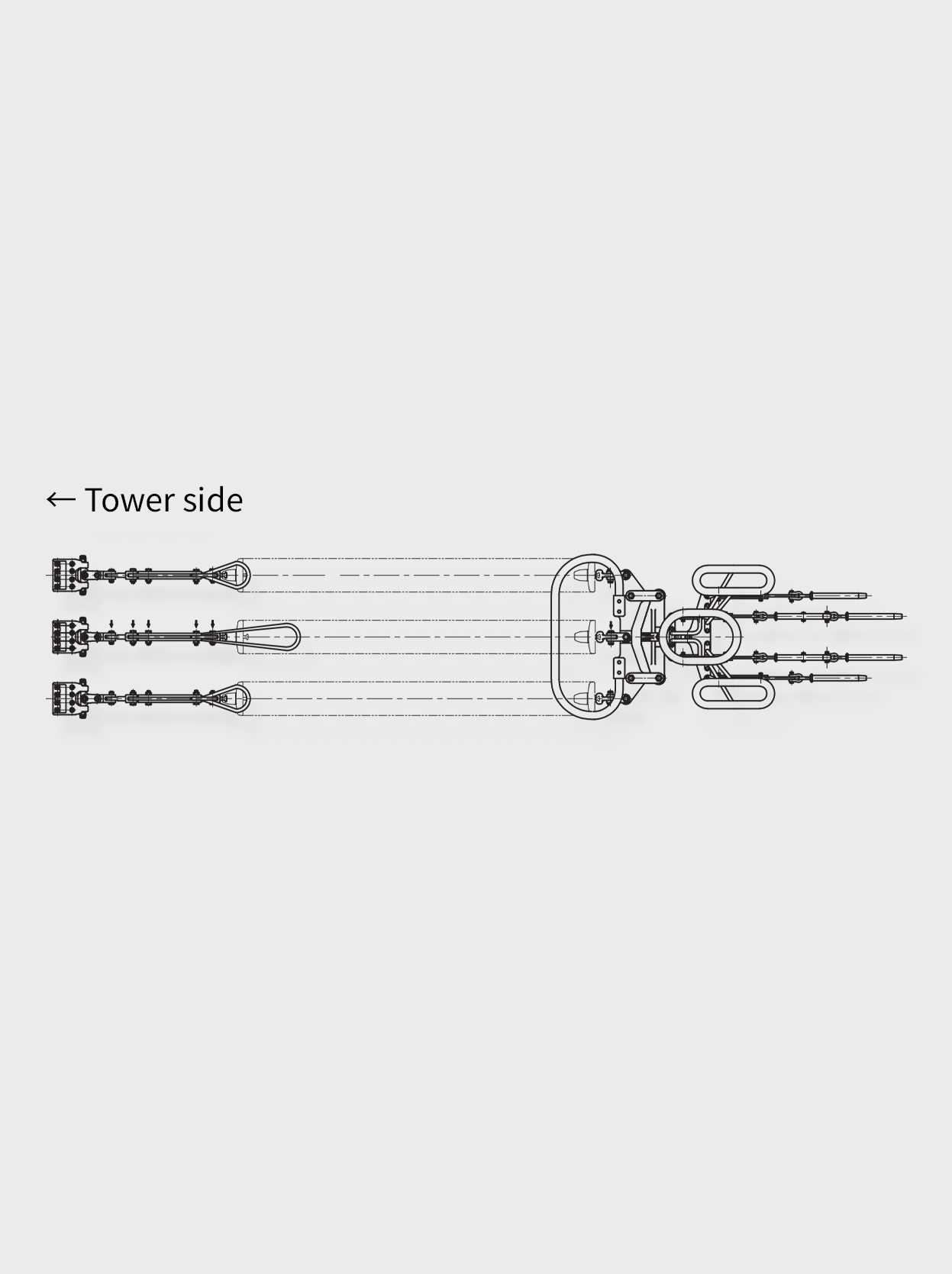

3-bundle tension 6B normal standard

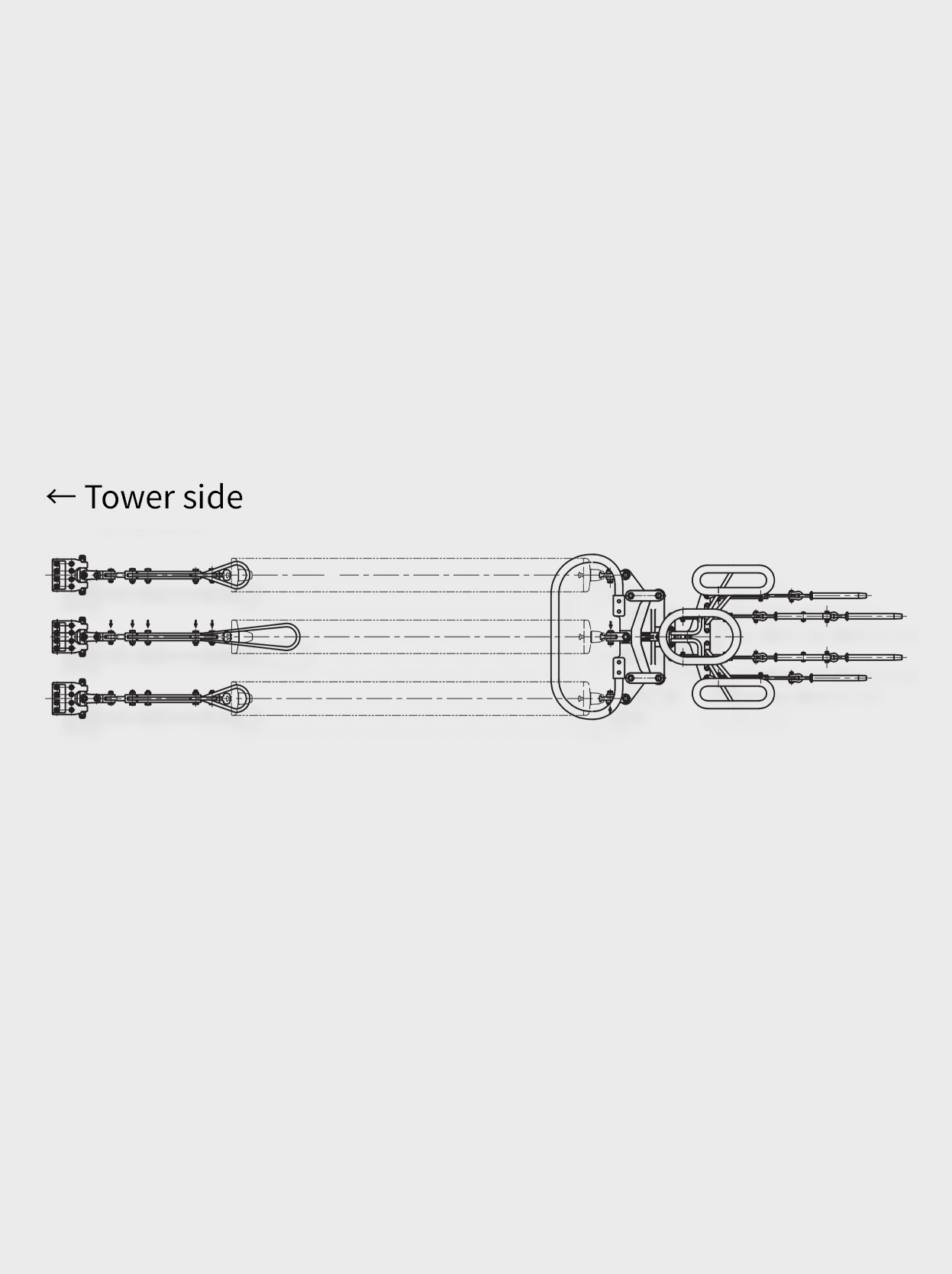

3-bundle tension 6B inverted standard
3-bundle tension 6B normal penetrating
3-bundle tension 6B inverted penetrating
2-bundle suspension 6B
(60ton)
2-bundle suspension 6B
(80ton)
765kV Insulator String Hardware
Function and use
Insulator hardware used in 765kV transmission lines, with conductors primarily in 6-bundle (6B) configurations, and insulator strings available in 2-bundle and 3-bundle arrangements
| Product Category | Product |
|---|---|
| Tension Hardware | 2-bundle tension 6B normal standard (80ton) |
| 2-bundle tension 6B inverted standard (80ton) | |
| 2-bundle tension 6B normal block-penetrating (80ton) | |
| 2-bundle tension 6B inverted block-penetrating (80ton) | |
| 3-bundle tension 6B normal standard (120ton) | |
| 3-bundle tension 6B inverted standard (120ton) | |
| 3-bundle tension 6B normal block-penetrating (120ton) | |
| 3-bundle tension 6B inverted block-penetrating (120ton) | |
| Suspension Hardware | 2-bundle suspension 6B (60ton) |
| 2-bundle suspension 6B (80ton) |
Types and Specification
| KEPCO Engineering Standard | Product Code | Model | Type | Test Tension (kgf) |
|---|---|---|---|---|
| GS-5975-0056 : 765kV Transmission Line Insulator String Hardware |
101-391 | 6 DS-060G | 2-bundle suspension insulator string hardware (standard) | 60,000 |
| 6 DS-060S | 2-bundle suspension insulator string hardware (reinforced) | |||
| 101-392 | 6 DS-080G | 2-bundle suspension insulator string hardware (standard) | 80,000 | |
| 6 DS-080S | 2-bundle suspension insulator string hardware (reinforced) | |||
| 101-393 | 6 DT-080F | 2-bundle tension insulator string hardware (normal) | 80,000 | |
| 101-394 | 6 DT-080R | 2-bundle tension insulator string hardware (inverted) | ||
| 101-395 | 6 TT-120F Ⅰ | 3-bundle tension insulator string hardware (normal) | 120,000 | |
| 6 TT-120F Ⅱ | ||||
| 101-396 | 6 TT-120R Ⅰ | 3-bundle tension insulator string hardware (inverted) | ||
| 6 TT-120R Ⅱ | ||||
| 101-399 | 6 JV-021 Ⅰ | Jumper support V-type device hardware | 21,000 | |
| 6 JV-021 Ⅱ | ||||
| 101-397 | 6 GS-016 | Ground wire device hardware (suspension) | 16,000 | |
| 101-398 | 6 GS-018 | Ground wire device hardware (tension) | 18,000 |
