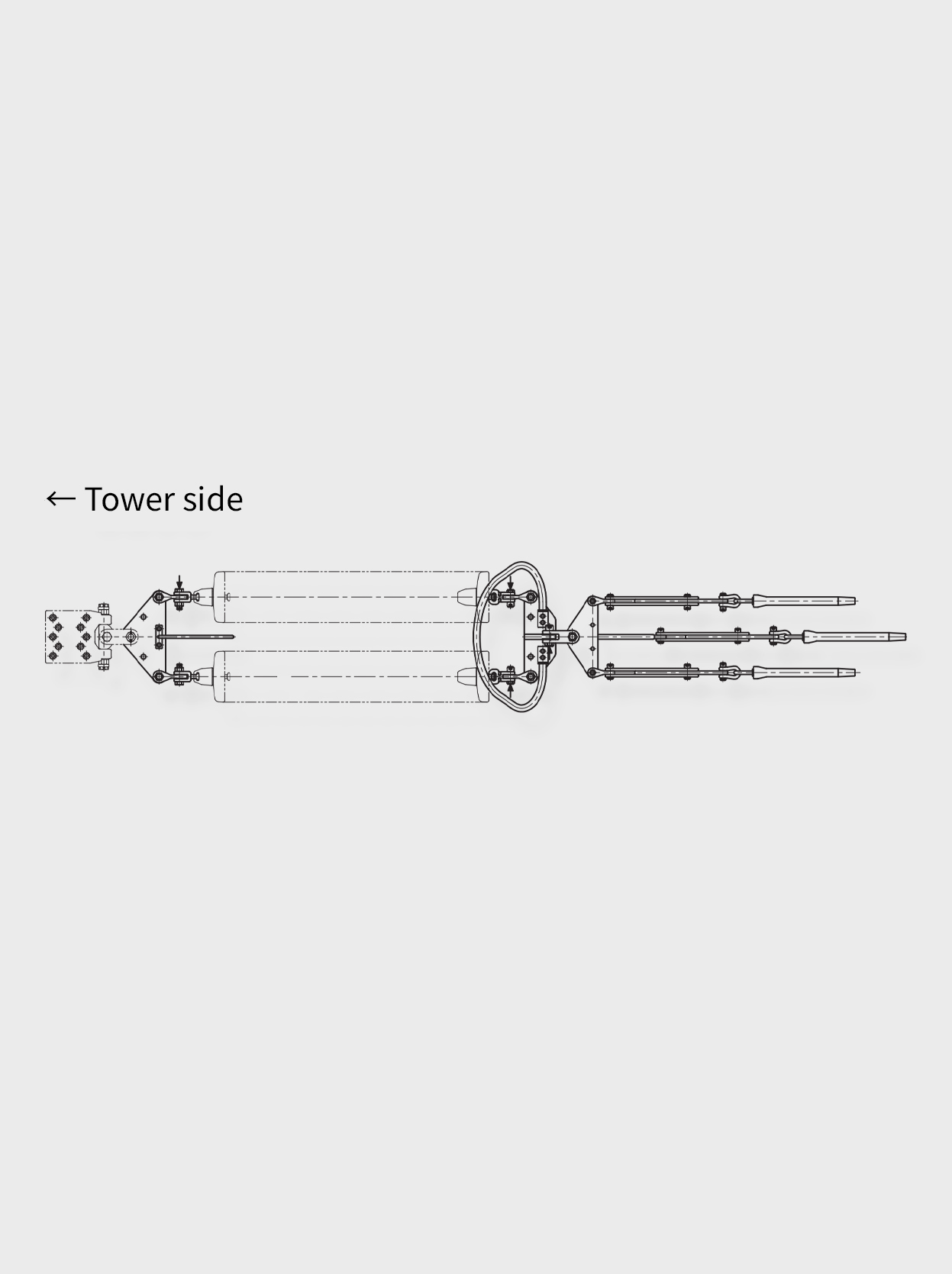

2-bundle tension 3B normal standard
(60ton)(intermediate line)

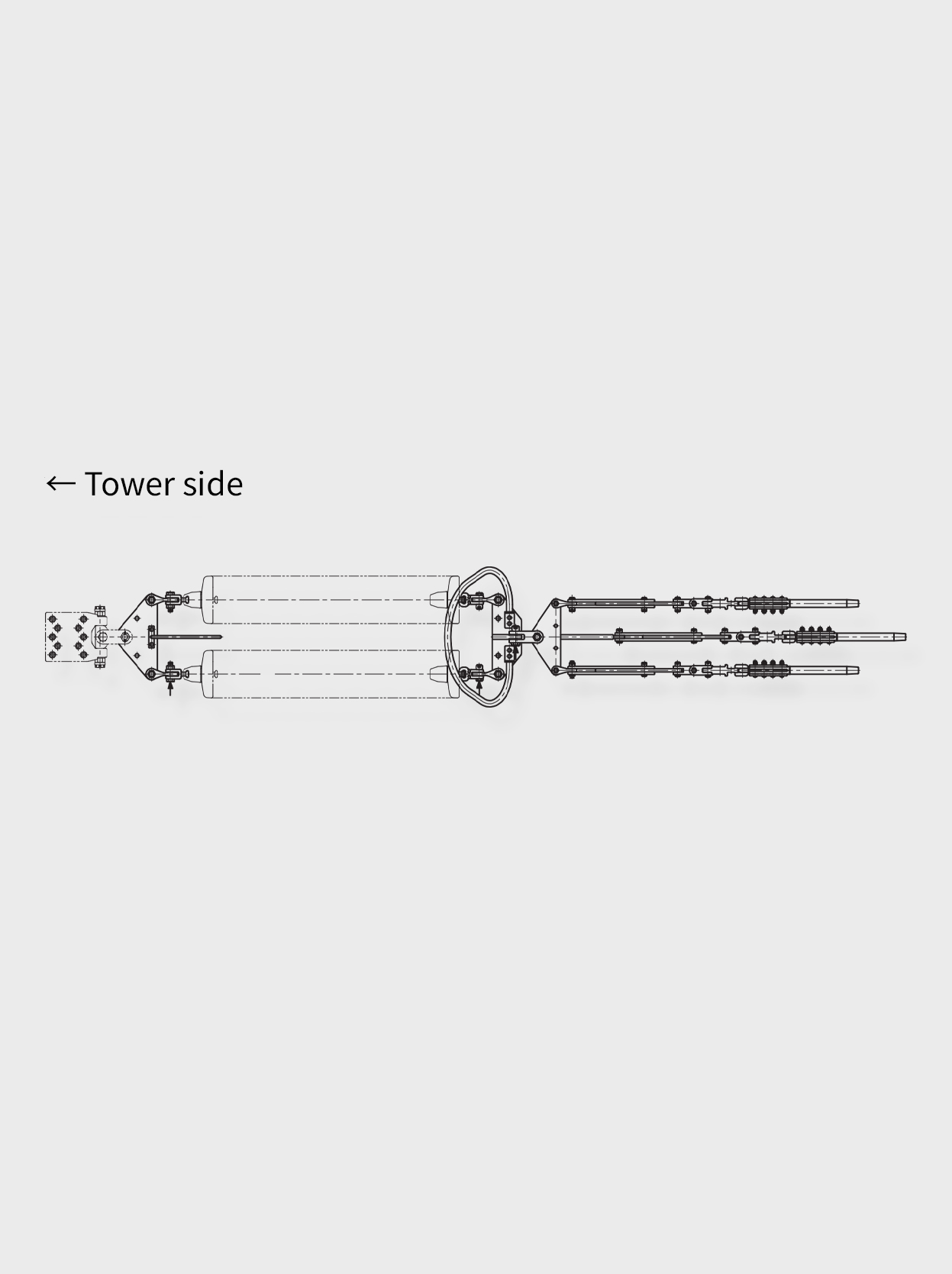

2-bundle tension 3B inverted standard
(60ton)(intermediate line)

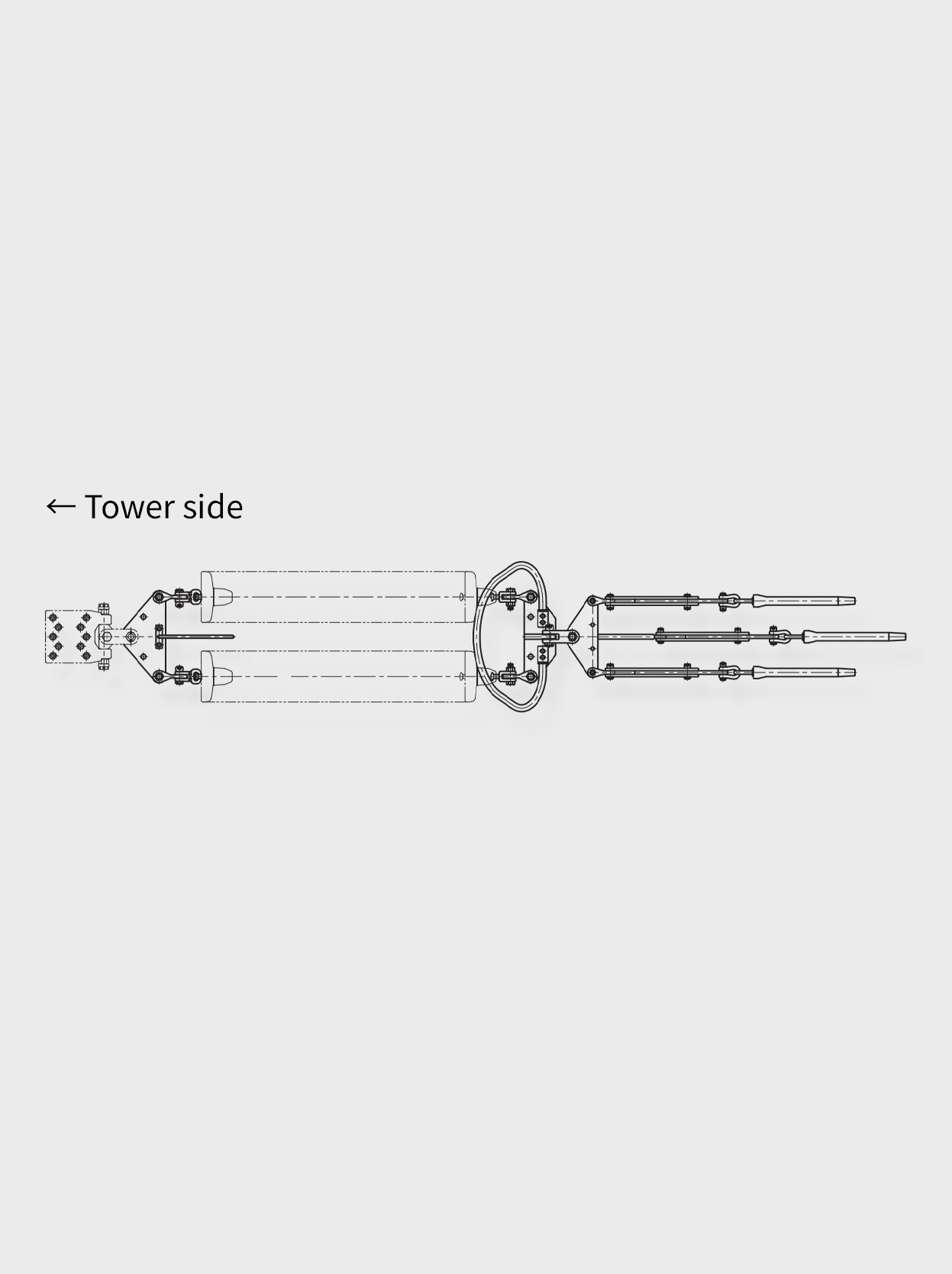

2-bundle tension 3B normal block-penetrating
(60ton)(intermediate line)
2-bundle tension 3B inverted block-penetrating
(60ton)(intermediate line)

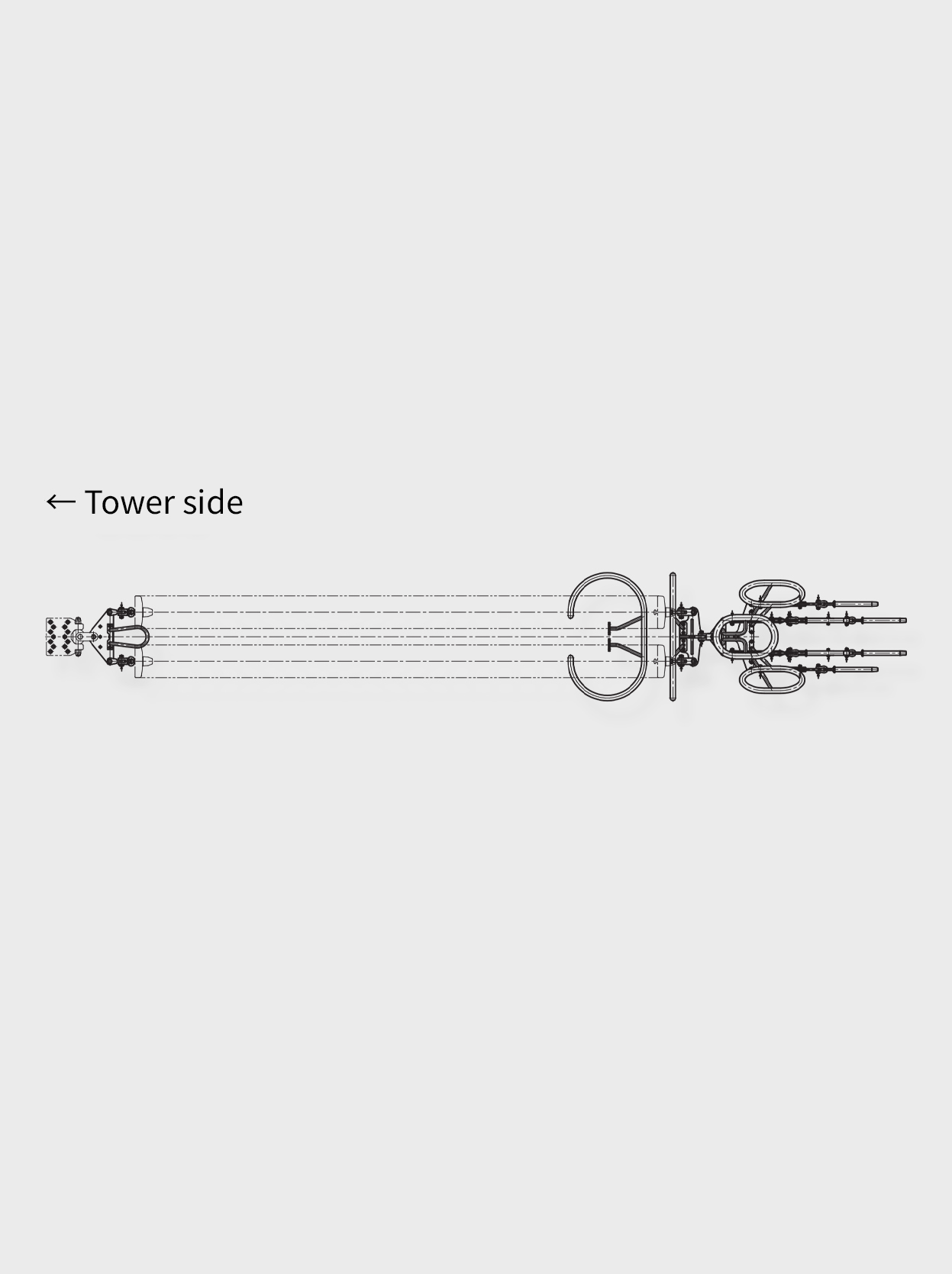

2-bundle tension 6B normal standard
(80ton)(power line)
2-bundle tension 6B inverted standard
(80ton)(power line)

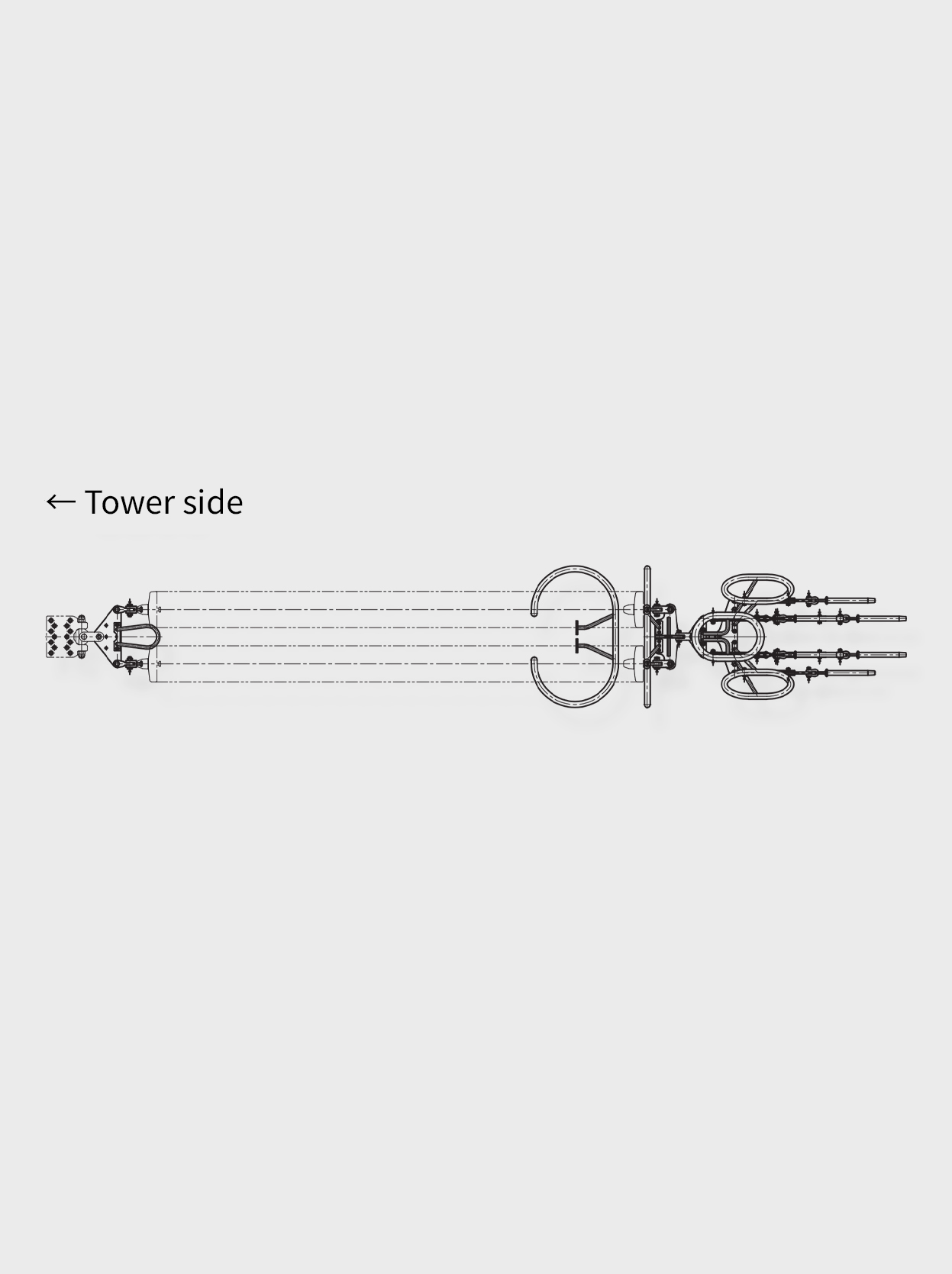

2-bundle tension 6B normal block-penetrating
(80ton)(power line)
2-bundle tension 6B inverted block-penetrating
(80ton)(power line)

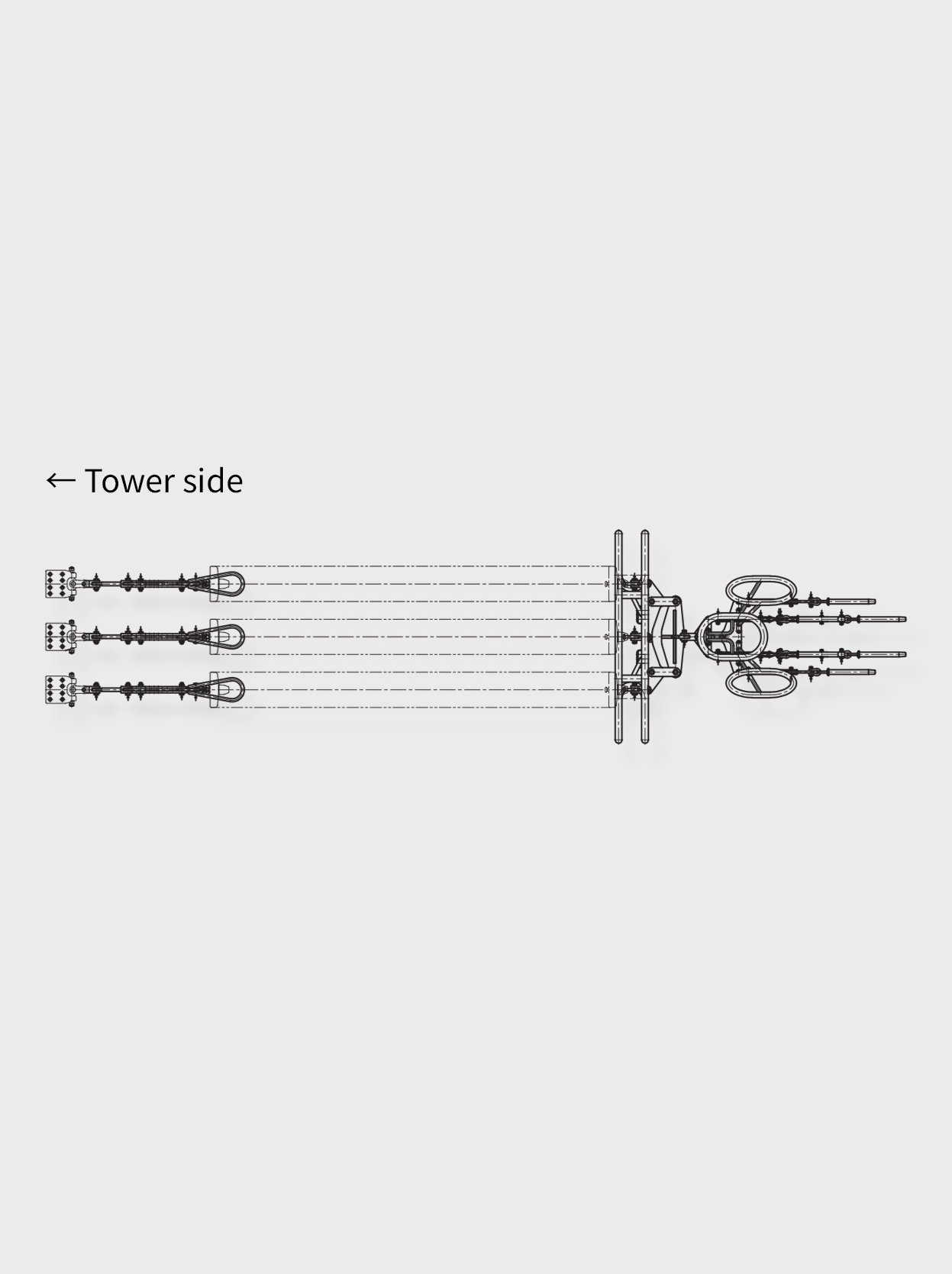

3-bundle tension 6B normal standard
(120ton)(power line)

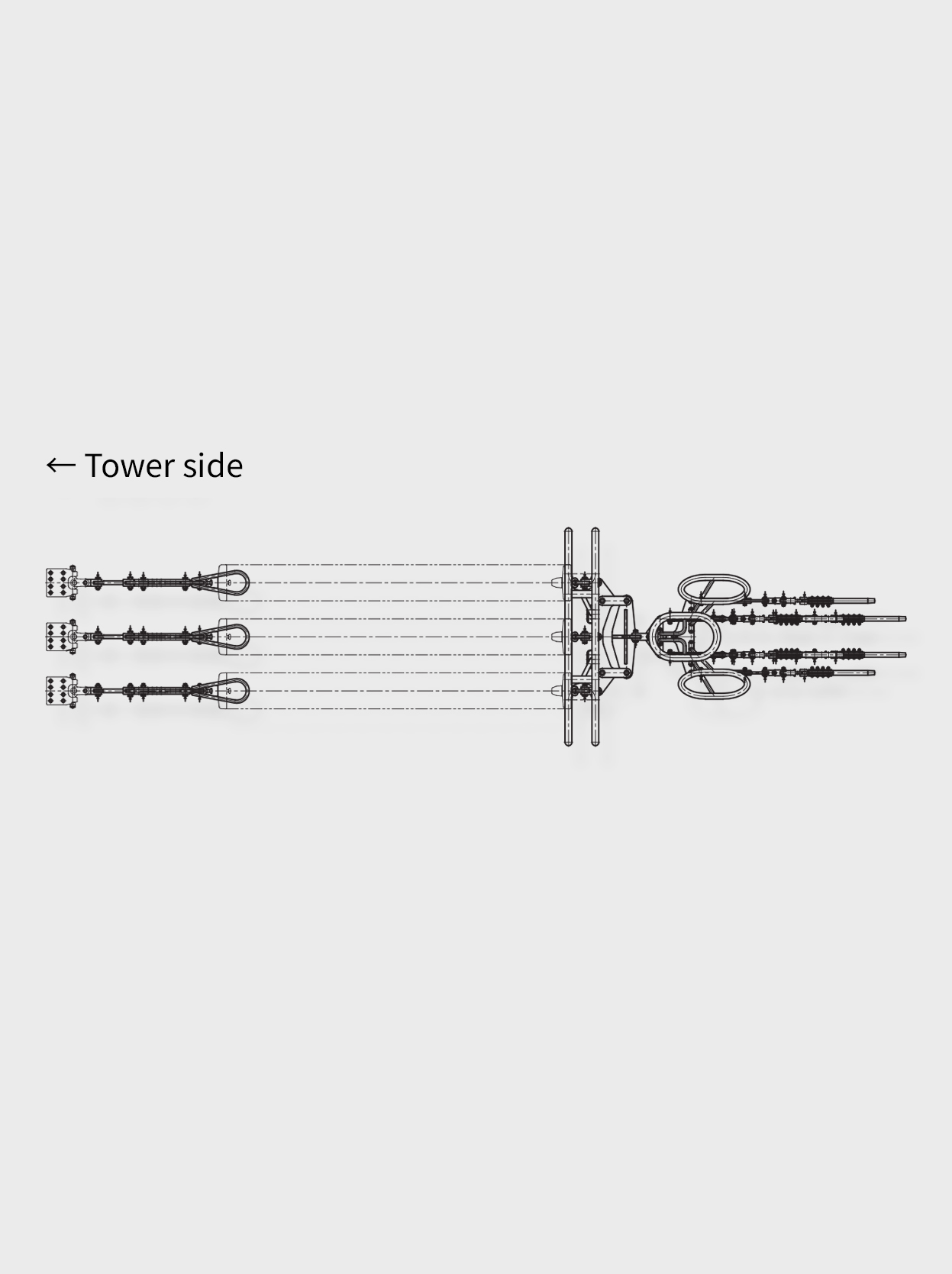

3-bundle tension 6B inverted standard
(120ton)(power line)
3-bundle tension 6B normal block-penetrating
(120ton)(power line)

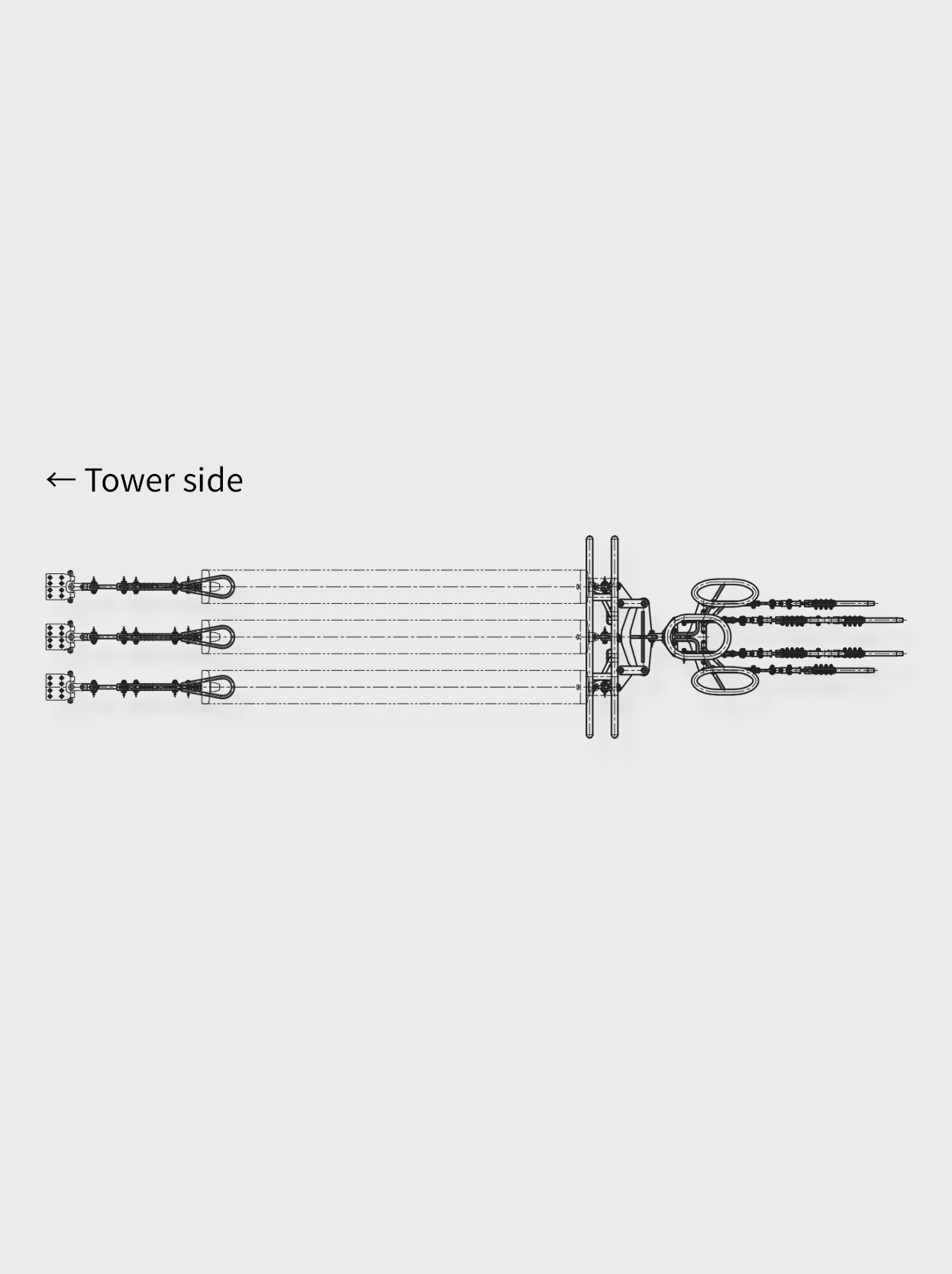

3-bundle tension 6B inverted block-penetrating
(120ton)(power line)
2-bundle suspension 3B
(42ton)(intermediate line)
2-bundle suspension 6B
(60ton)(power line)
2-bundle suspension 6B
(80ton)(power line)
| Product Category | Product |
|---|---|
| Tension-type hardware | 2-bundle tension 3B normal standard(60ton) (intermediate line) |
| 2-bundle tension 3B inverted standard(60ton) (intermediate line) |
|
| 2-bundle tension 3B normal block-penetrating(60ton) (intermediate line) |
|
| 3-bundle tension 6B normal standard(80ton) (power line) |
|
| 3-bundle tension 6B inverted standard(80ton) (power line) |
|
| 3-bundle tension 6B normal block-penetrating(80ton) (power line) |
|
| 3-bundle tension 6B inverted block-penetrating(80ton) (power line) |
|
| 3-bundle tension 6B normal standard(120ton) (power line) |
|
| 3-bundle tension 6B inverted standard(120ton) (power line) |
|
| 3-bundle tension 6B normal block-penetrating(120ton) (power line) |
|
| 3-bundle tension 6B inverted block-penetrating(120ton)(power line) | |
| Suspension-type hardware | 2-bundle suspension 3B(42ton) (intermediate line) |
| 2-bundle suspension 6B(60ton) (power line) |
|
| 2-bundle suspension 6B(80ton) (power line) |
Types and Specifications
| KEPCO Engineering Standard | Item Number | Model | Type | Test Load (kgf) |
|---|---|---|---|---|
| GS-5975-0207 : 500kV HVDC Power Line Insulator String GS-5975-0206 : 500kV HVDC Neutral Line Insulator String |
127120 | DC 6 DS-060 | 2-bundle suspension insulator string hardware (60T) | 60,000 |
| 127121 | DC 6 DS-080 | 2-bundle suspension insulator string hardware (80T) | 80,000 | |
| 127122 | DC 6 DT-080 Ⅰ | 2-bundle tension insulator string hardware (normal, standard) | 80,000 | |
| 127837 | DC 6 DT-080 Ⅱ | 2-bundle tension insulator string hardware (normal, penetrating) | ||
| 127123 | DC 6 DT-080R Ⅰ | 2-bundle tension insulator string hardware (inverted, standard) | ||
| 127838 | DC 6 DT-080R Ⅱ | 2-bundle tension insulator string hardware (inverted, penetrating) | ||
| 127124 | DC 6 TT-120 Ⅰ | 3-bundle tension insulator string hardware (normal, standard) | 120,000 | |
| 127839 | DC 6 TT-120 Ⅱ | 3-bundle tension insulator string hardware (normal, penetrating) | ||
| 127125 | DC 6 TT-120R Ⅰ | 3-bundle tension insulator string hardware (inverted, standard) | ||
| 127840 | DC 6 TT-120R Ⅱ | 3-bundle tension insulator string hardware (inverted, penetrating) | ||
| 127126 | DC 6 JV-021 | V-type insulator string hardware (jumper support) | 21,000 | |
| 127116 | DC 3 DS-042 | 2-bundle suspension insulator string hardware | 42,000 | |
| 127117 | DC 3 DT-060 Ⅰ | 2-bundle tension insulator string hardware (normal, standard) | 60,000 | |
| 127835 | DC 3 DT-060 Ⅱ | 2-bundle tension insulator string hardware (normal, penetrating) | ||
| 127118 | DC 3 DT-060R Ⅰ | 2-bundle tension insulator string hardware (inverted, standard) | ||
| 127835 | DC 3 DT-060R Ⅱ | 2-bundle tension insulator string hardware (inverted, penetrating) | ||
| 127119 | DC 3 JI-021 | I-type insulator string hardware (jumper support) | 21,000 |
