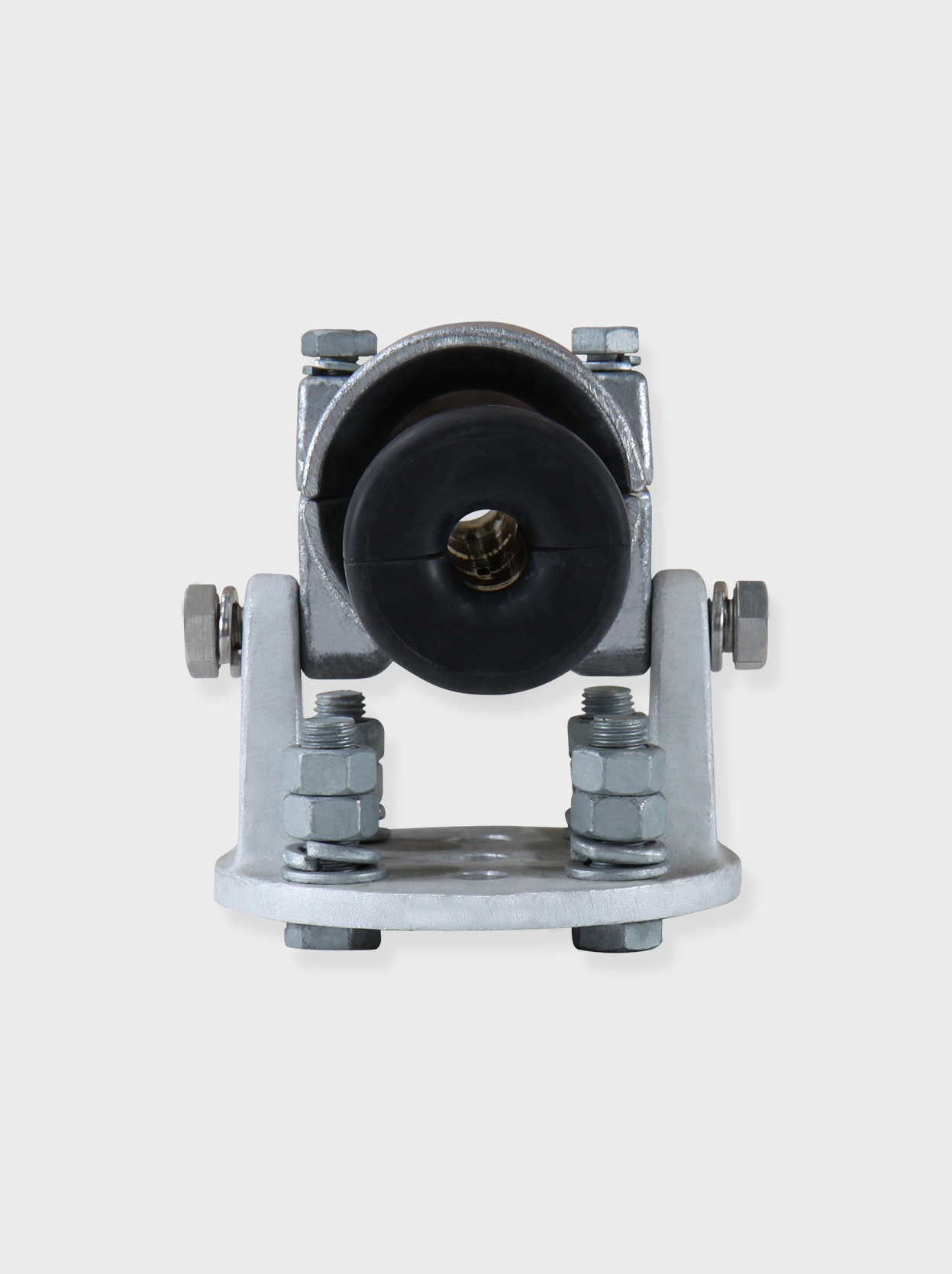

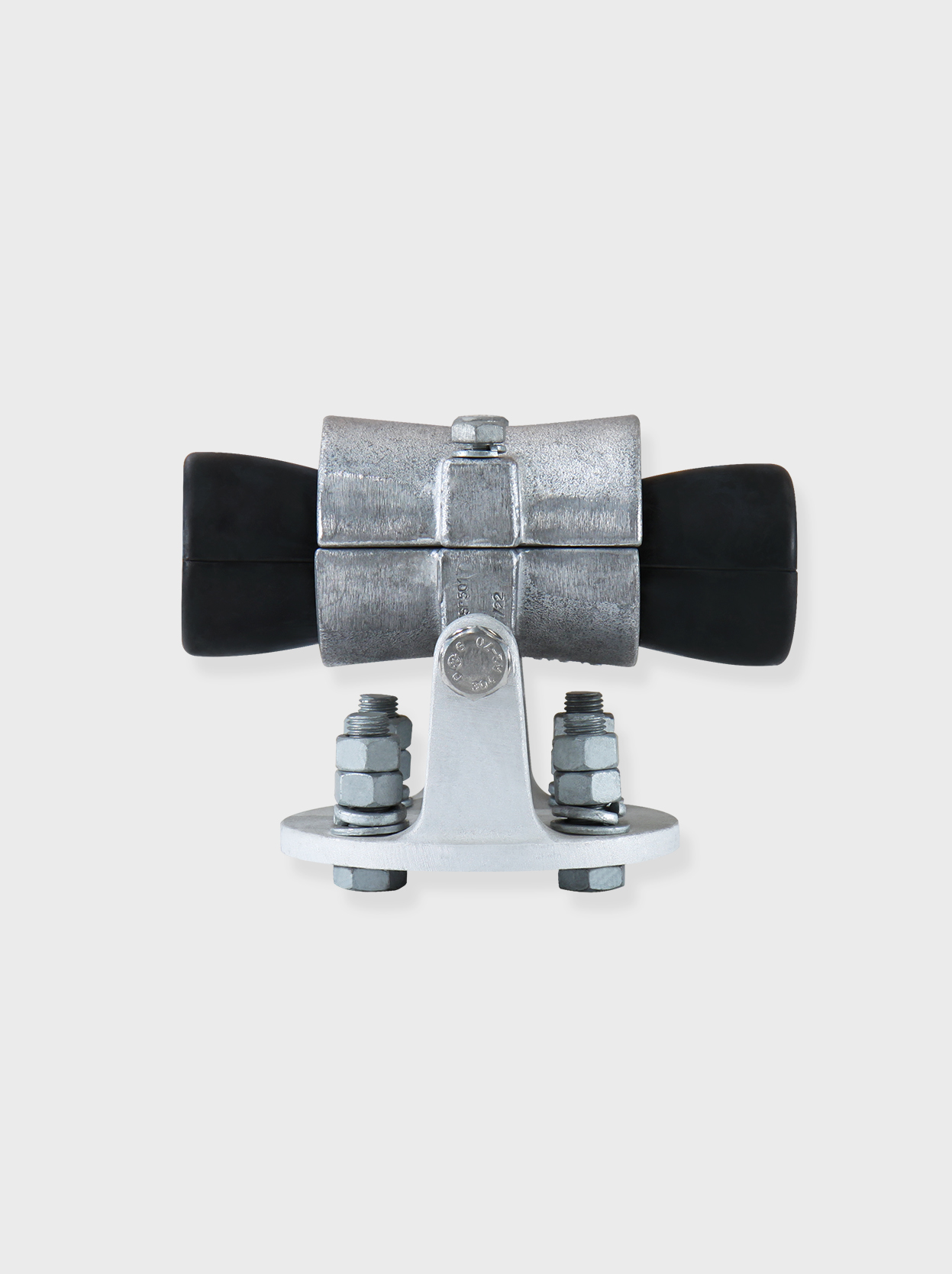

Type 1 GRIP-type suspension clamp set
Type 1 GRIP-type suspension clamp set

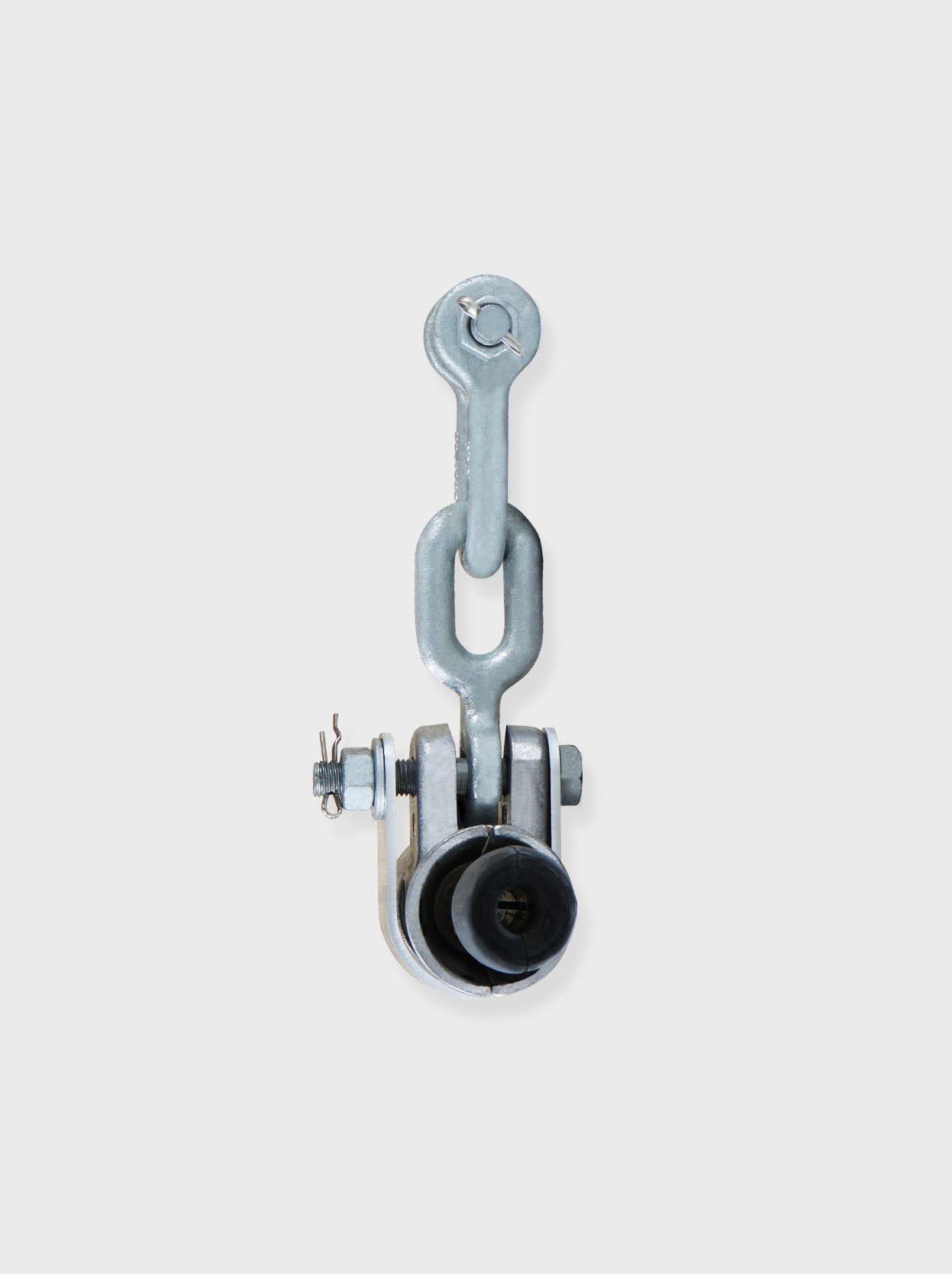

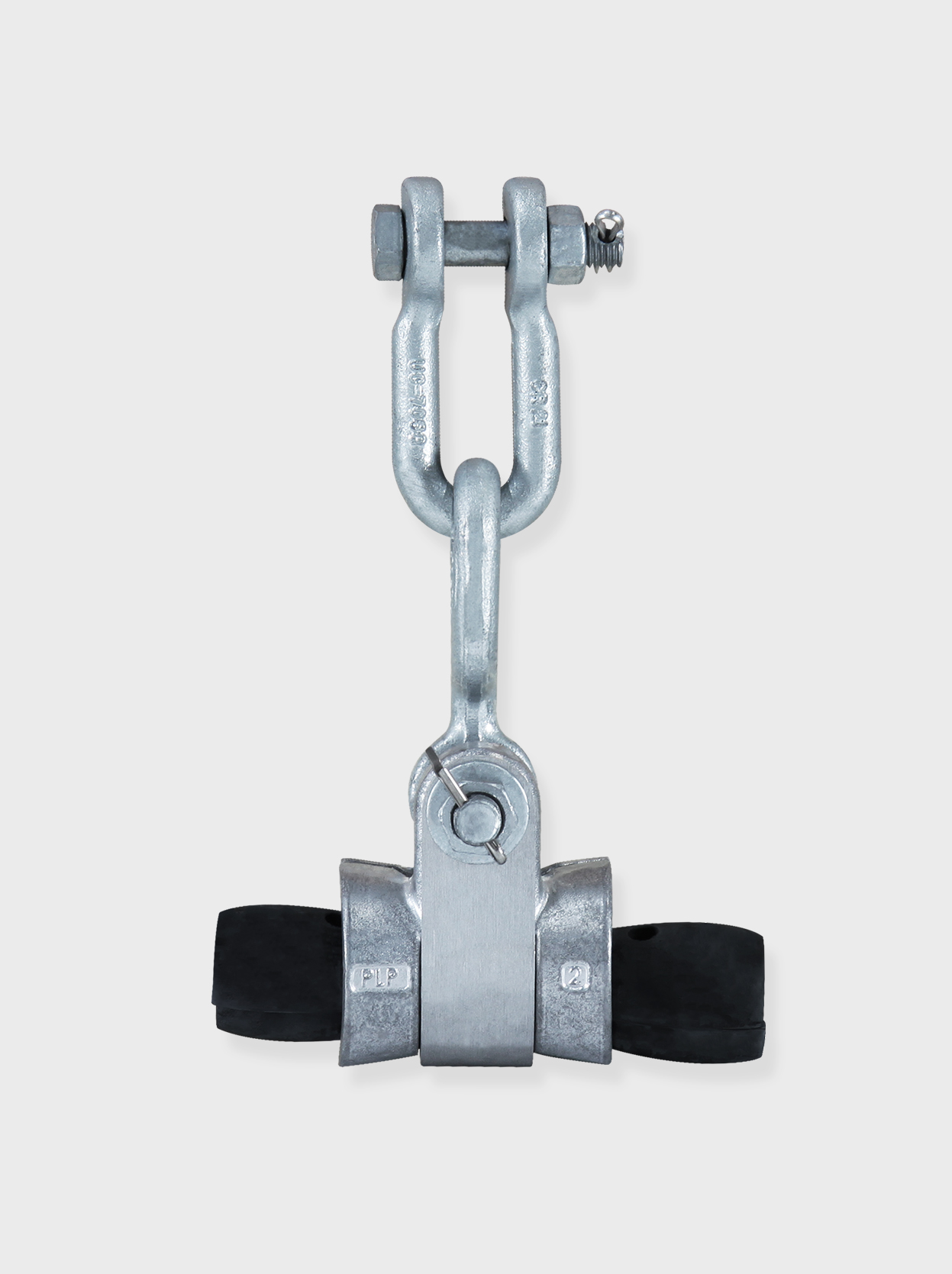

Type 2 GRIP-type suspension clamp
Type 2 GRIP-type suspension clamp

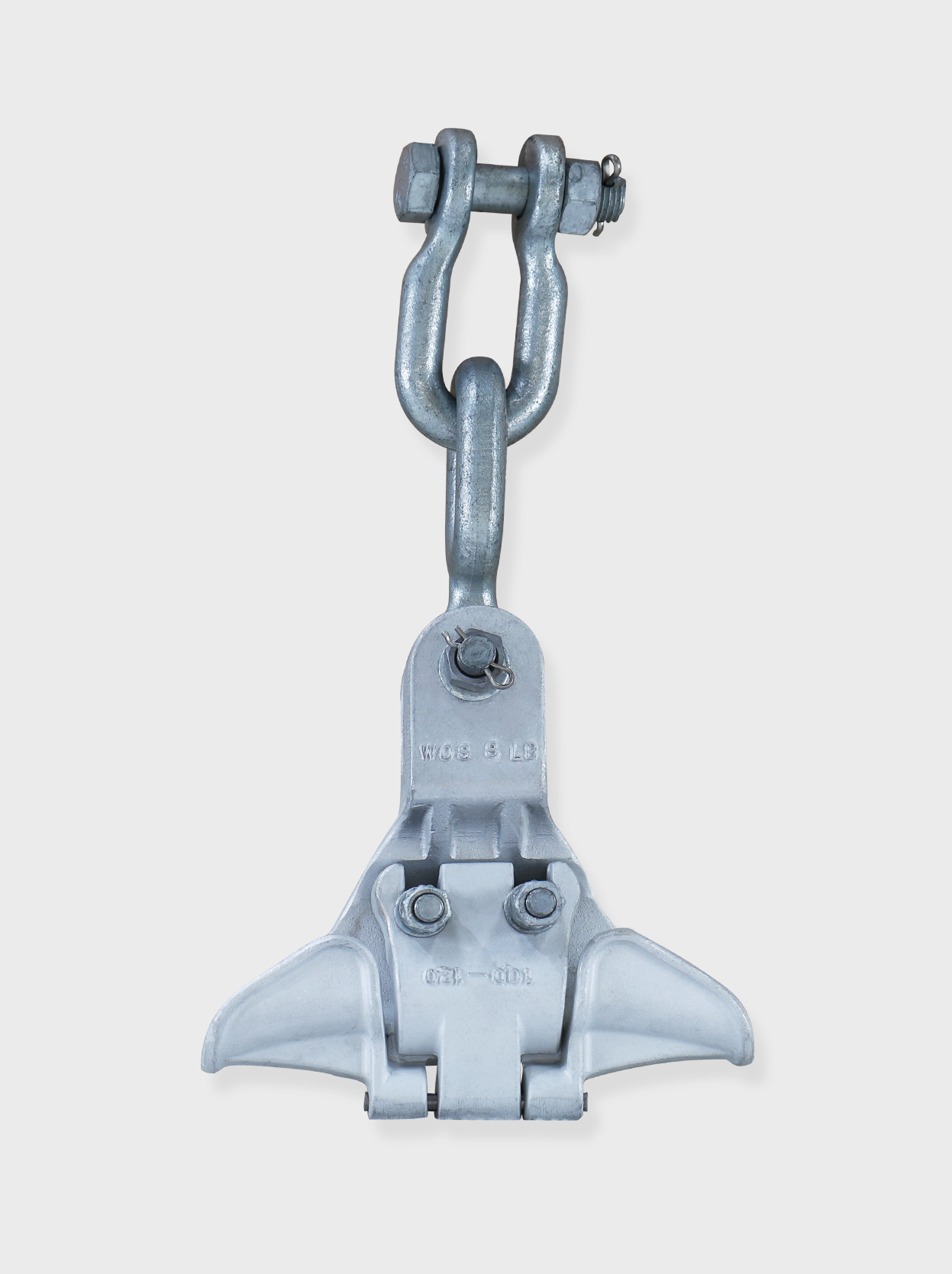

Hinge-type suspension clamp
Suspension-Type Fixing Device
Function and use
Hardware used for type 1 suspension towers, auxiliary hardware for fastening suspension clamps to type 1 suspension towers, GRIP-type hardware used for type 2 suspension towers, hinge-type hardware used for type 2 suspension towers, and suspension clamps used for mounting high-strength OPGW cables in long-span applications
| Product Category | Product |
|---|---|
| OPGW GRIP Suspension-Type Fixing Device(Type 1) | Suspension-Type Fixing Device(70SQ) |
| OPGW GRIP Suspension-Type Fixing Device(Type 2) | Suspension-Type Fixing Device(100SQ) |
| Hinge-Type Suspension Fixing Deveice (Type 2) | Suspension-Type Fixing Device(120SQ) |
Types and Specifications
| KEPCO Engineering Standard | Material Number | Name | Abbreviation | Wire Diameter (mm) |
|---|---|---|---|---|
| GS-6015-0010 | 106659 | GRIP-type suspension clamp (type 1) | WGS-1-S | 13.75 |
| 106660 | WGS-1-L | 16.0 | ||
| 106656 | GRIP-type suspension clamp (type 2) | WGS-2-S | 13.75 | |
| 106657 | WGS-2-L | 16.0 | ||
| 106658 | WGS-2-B | 17.5 | ||
| 107436 | WGS-2-G | 20.0 | ||
| 127437 | Hinge-type suspension clamp (type 2) | WOS-2-S | 13.75 | |
| 127438 | WOS-2-L | 16.0 | ||
| 127439 | WOS-2-B | 17.5 | ||
| 127440 | WOS-2-G | 20.0 |
