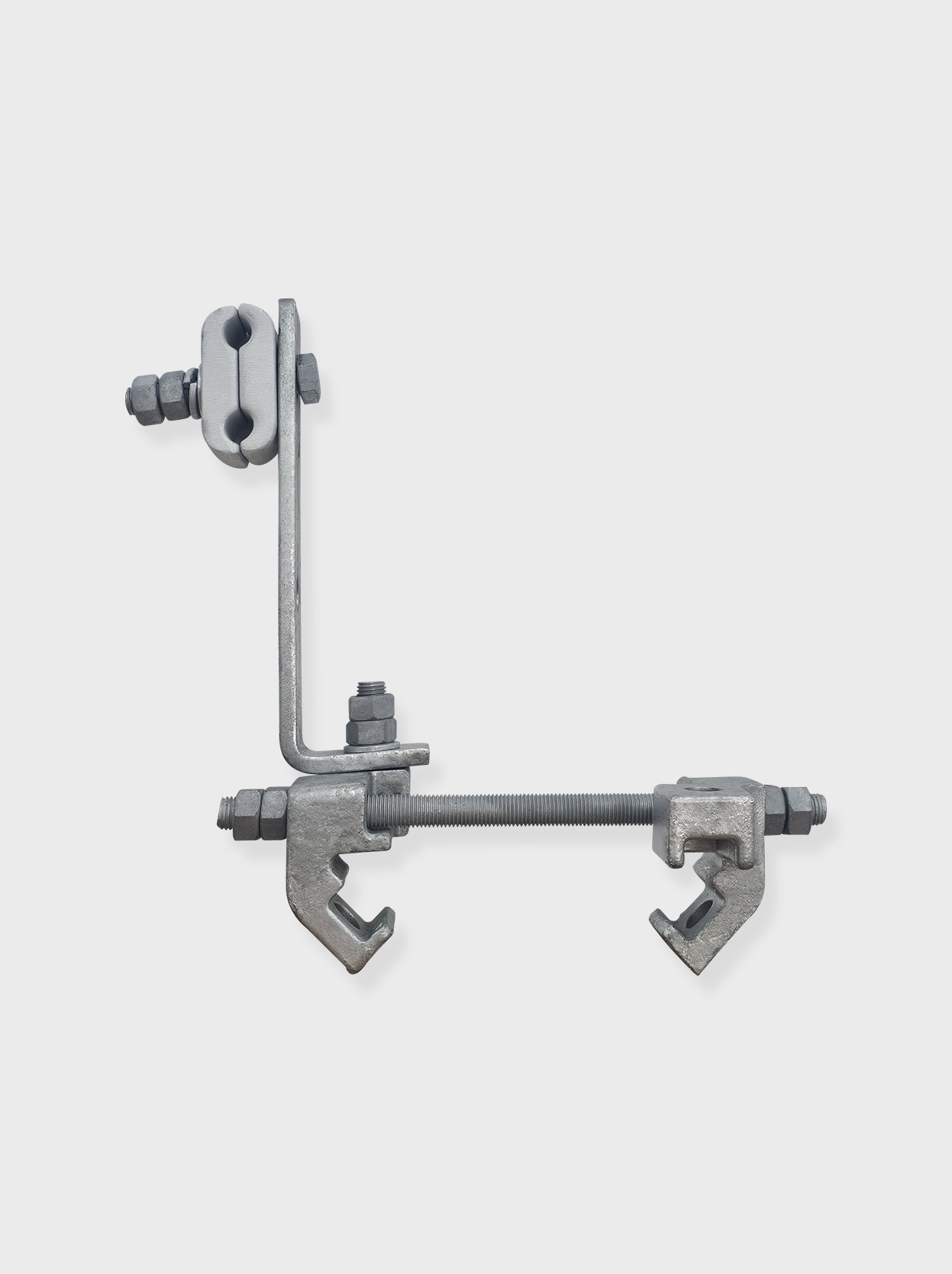

OPGW Tower fixation clamp(Y-1)

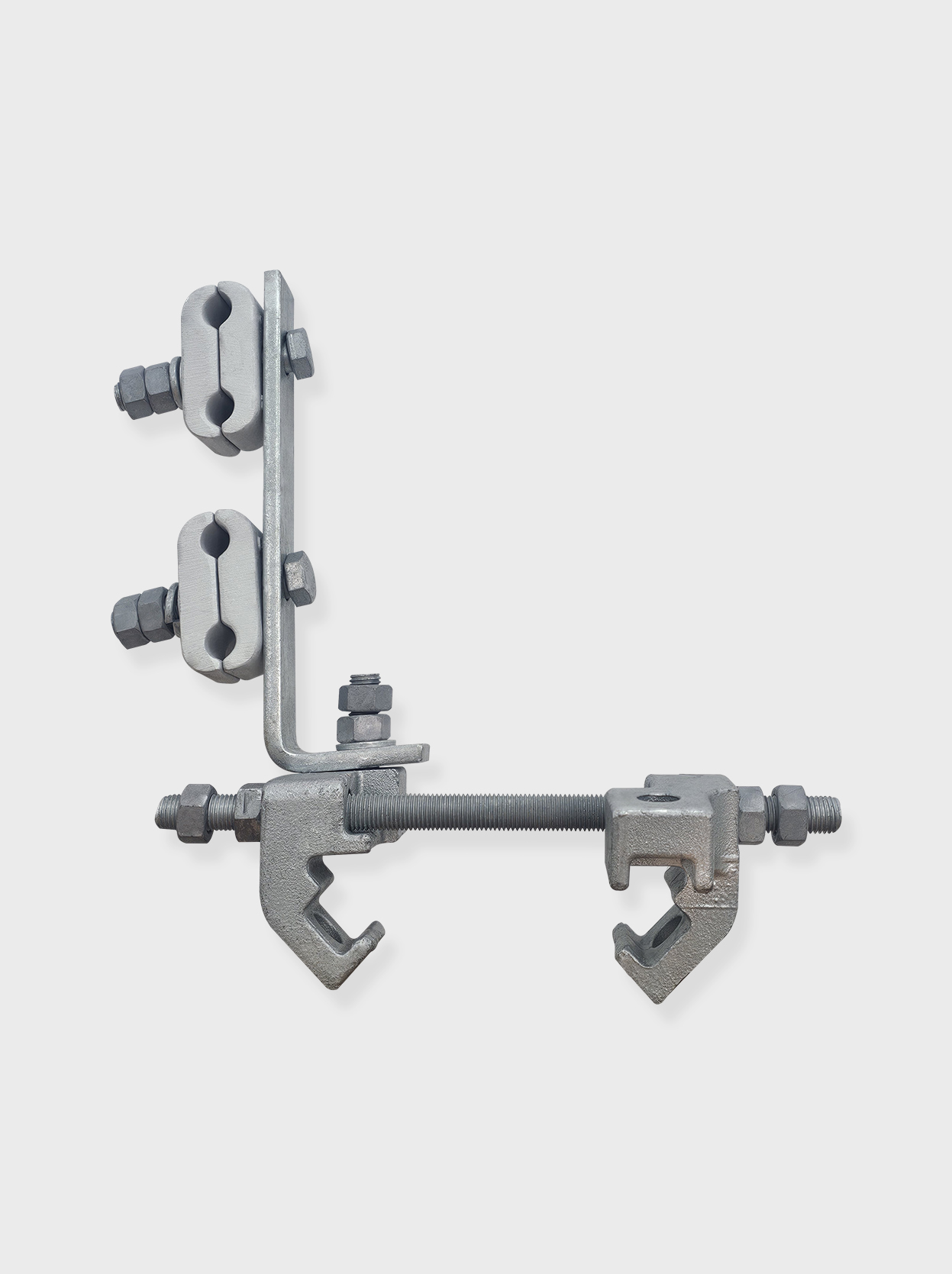

OPGW Tower fixation clamp(Y-2)
Tower fixation clamp
Function and use
Hardware used at OPGW cable junction to prevent contact between OPGW cable and tower
| Product Category | Product |
|---|---|
| Tower fixation clamp | Y1-70 |
| Y1-100 | |
| Y1-120 | |
| Y1-200 | |
| Y2-70 | |
| Y2-100 | |
| Y2-120 | |
| Y2-200 |
Types and Specifications
| KEPCO Engineering Standard | Material Number | Abbreviation | Applicable Line Type (mm²) | Type | Usage | Remarks | ||
|---|---|---|---|---|---|---|---|---|
| GS-6015-0010 | 101781 | WFG-Y1-S | OPGW-70mm² | Y1-S | Type 2 fixed | 5m interval installation | ||
| 101783 | WFG-Y1-L | OPGW-100mm² | Y1-L | |||||
| 101784 | WFG-Y1-B | OPGW-120mm² | Y1-B | |||||
| 101782 | WFG-Y2-S | OPGW-70mm² | Y2-S | Type 4 fixed | Excess length management section | |||
| 101785 | WFG-Y2-L | OPGW-100mm² | Y2-L | |||||
| 101786 | WFG-Y2-B | OPGW-120mm² | Y2-B | |||||
