OPGW connection terminal ACSR cable
Grounding hardware
Function and use

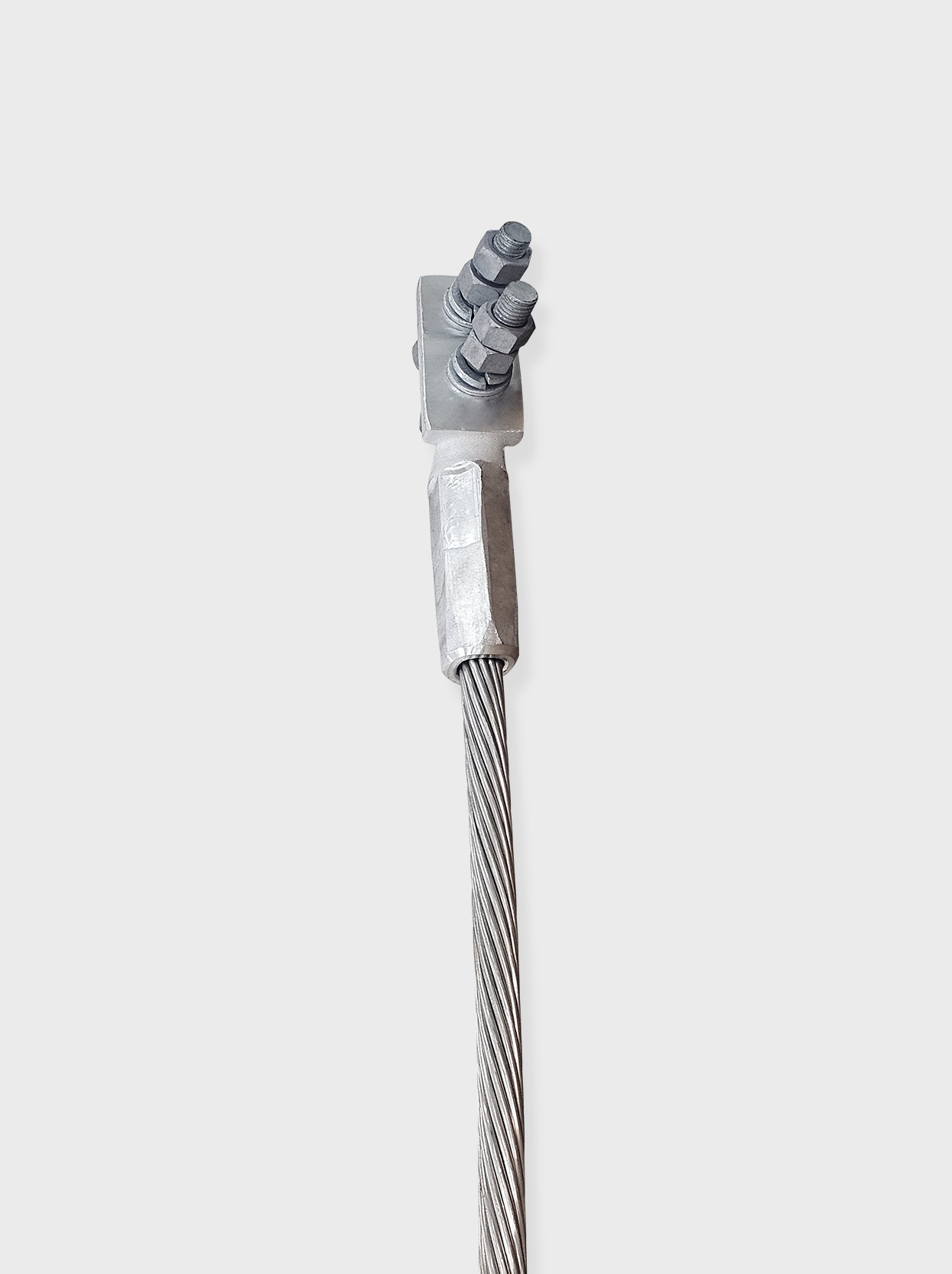

Grounding hardware for OPGW cables and towers, including PG clamps for connecting OPGW cables to grounding conductors and compression terminals for connecting grounding conductors to towers
| Product Category | Product |
|---|---|
| PG clamp | 70mm² |
| 100mm² | |
| 120mm² | |
| 200mm² | |
| Compression terminal | 100mm²or less |
| 120mm² | |
| 200mm² | |
| ACSR cable | 97mm² * 2m |
| 120mm² * 2m | |
| 200mm² * 2m |
OPGW GRIP-type PG clamp types and specifications
| Material number | Abbreviation | Specification | Applicable Line (mm) | |
|---|---|---|---|---|
| A-axis cable outer diameter (d) ACSR or AWS |
B-axis cable outer diameter (D) OPGW Cable |
|||
| 102042 | WPG-G-S | 70mm² | 16.0 | 19.65 |
| 102045 | WPG-G-L | 100mm² | 16.0 | 22.5 |
| 102046 | WPG-G-B | 120mm² | 17.5 | 24.0 |
| WPG-G-G | 200mm² | 18.5 | 26.5 | |
Types and Specifications of OPGW Terminals
| Material number | Abbreviation | Applicable Line (ACSR) | Remarks |
|---|---|---|---|
| 102626 | WST-SL | 100mm²or less | |
| 102627 | WST-B | 120mm² | |
| 102605 | WST-G-1 | 200mm² | For 2 bolts |
| 127405 | WST-G-2 | For 4 bolts |
OPGW ACSR or AWS Types and Specifications
| Material number | Abbreviation | Applicable Line (mm) | Tensile Load (kgf) | Temperature Test Current (A) | Electrical Resistance (Ω / km) | ||
|---|---|---|---|---|---|---|---|
| Specification (mm²) | Number of Strands / Strand Diameter | ||||||
| AL (Strands / mm) | ST (Strands / mm) | ||||||
| 100694 | 97mm² * 2m | 97mm² X 2m | 12/3.2 | 7/3.2 | 2,400 | 330 | 0.30 |
| 100695 | 120mm² * 2m | 120mm² X 2m | 12/3.5 | 7/3.5 | 2,900 | 390 | 0.25 |
| 100696 | 200mm² * 2m | 200mm² X 2m | AW 19/3.7 | 3,000 | 633 | 0.193 | |
